MECHANICS



2D Motion



Circular Motion 1



position vector

velocity

acceleration

vertical circle







Summary of equations









Describing the circle - position vector R





circle position vector R





i & j are unit vectors along the x and y-axis respectively.



The position vector R of a particle at P from O, at time t, is given by:





circle - position vector equationo





As the position vector R rotates anti-clockwise, the particle at P traces out a circle of radius r .





back to top





The velocity vector V



The velocity vector V at an instant is given by differentiating the position vector R with respect to t .



Here the unit vectors i & j, parallel to the x and y-axes, are centred on the particle at P.





vector equation for velocity







circle vector V







the magnitude of the velocity is given by:





circle velocity equation





back to top

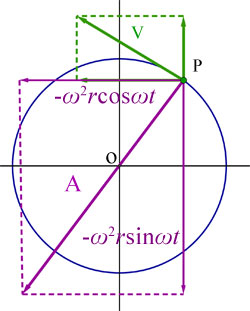

The acceleration vector A



The acceleration of the particle at P is given by differentiating V with respect to t .





circle - the acceleration vector





circle - equation for acceleration

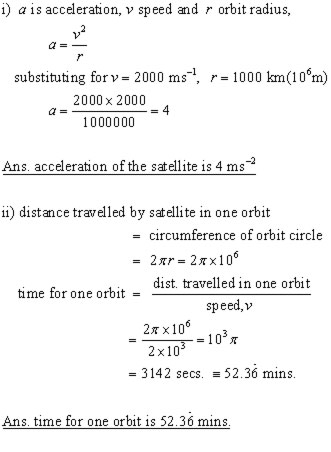

Example



A satellite is moving at 2000 ms-1 in a circular orbit around a distant moon.



If the radius of the circle followed by the satellite is 1000 km, find:


i) the acceleration of the satellite
ii) the time for the satellite to complete one full orbit of the moon in minutes(2d.p.).





circle problem#01



back to top

Non-uniform circular motion(vertical circle)



A more in-depth treatment of motion in a vertical circle is to be found in 'kinetics/more circular motion'.



Here we look at the more general case of the acceleration component along the circle and the component towards the centre varying.



circle - non-uniform acceleration





Example



A particle starts to move in a circular direction with an angular speed of 5 rad s-1 .
The radius of the circle of motion is 4 m, and the angular speed at time t is given by,



circle - non-uniform acceleration problem #01



What is,



i) the linear speed of the particle 6 secs. after it starts moving?

ii) the resultant particle acceleration?

(answers to 1 d.p.)



circle - non-uniform acceleration problem #01b





back to top
